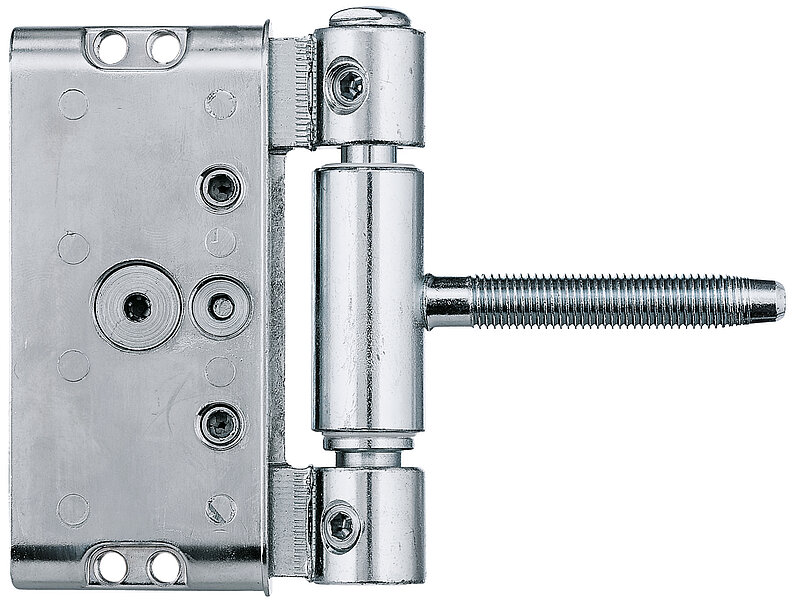

Duplex DU320-3D-TGB
Front door hinge with hinge cup and sash pin – up to 160 kg door weight
Product selection
Select a product version so we can show you the exact availability and price.
Available from Goll warehouse.
Delivery quantity on request
Stock availability is being double-checked.
Bulk quantity on request
Stock availability is being double-checked.
UVP/Piece
EUR
-
Order number
Order number Stift
Order number Schrauben
All orders are processed through us and invoiced through your chosen retailer. Prices exclude VAT.
Quick order
+43 5574 74177-0
+43 5574 74177-0
Finishes
| Order number | Finish | ctn | x-ctn | UVP / Piece | Krt. | Total Piece | |||
|---|---|---|---|---|---|---|---|---|---|
| DU320DL-3L-TGB-WV-S |
weiß verz.-links
|
10 | 50 | 10 | EUR 47,34 |
Available immediately
On request
Quantity on request
|
|||
| DU320DL-3R-TGB-WV-S |
white zinc-plated – right
|
10 | 50 | 10 | EUR 47,34 |
Available immediately
On request
Quantity on request
|
| Order number | Finish | ctn | x-ctn | UVP / Piece | Krt. | Total Piece | |||
|---|---|---|---|---|---|---|---|---|---|
| DU320DL-3L-TGB-WV-S S1 |
white zinc-plated – left
|
10 | 50 | 10 | EUR 50,60 |
Available immediately
On request
Quantity on request
|
|||
| DU320DL-3R-TGB-WV-S S1 |
white zinc-plated – right
|
10 | 50 | 10 | EUR 50,60 |
Available immediately
On request
Quantity on request
|
Description

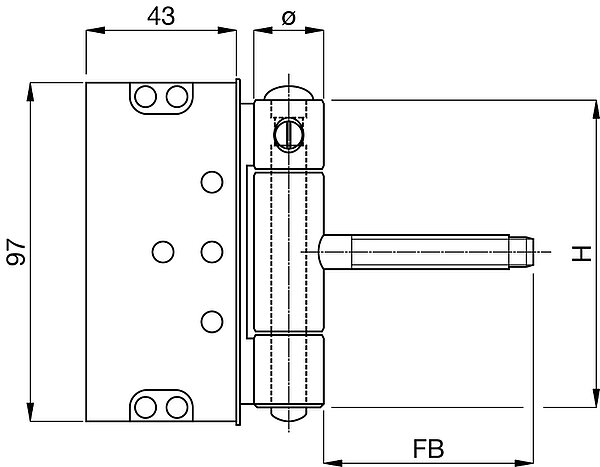

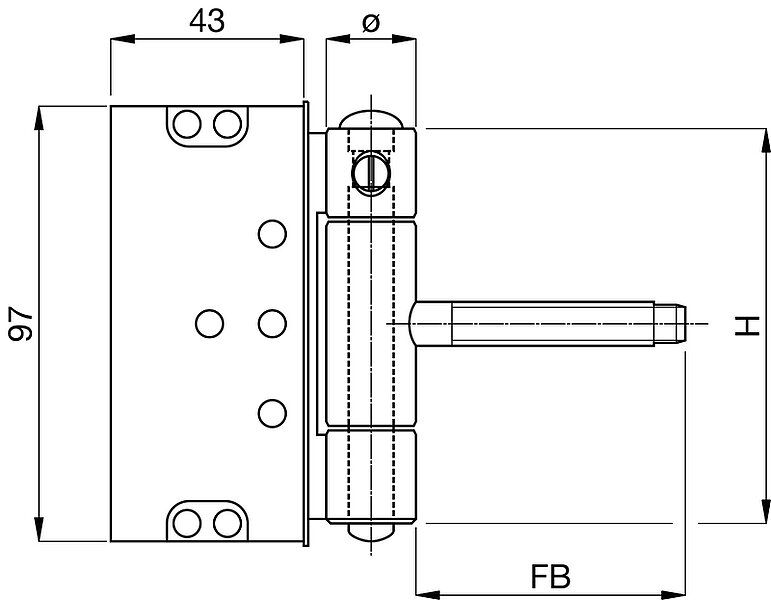

Technical data
|
Hingetype |
Sash pin mm |
Hinge rollØ mm |
Hinge height mm |
Load cap. 2 Hng. kg |
Load cap. 3 Hng. kg |
Load cap. 4 Hng. kg |
Fire protection |
CE |
|---|---|---|---|---|---|---|---|---|
| TGB | Ø9,8x60 | Ø20 | 97 | 110 | 130 | 160 | ||
| TGB..S1 | Ø9,8x100 | Ø20 | 97 | 110 | 130 | 160 | T30 |
Features
Downloads
Product information
[ pdf ]
CAD data
[ dwg ]
[ dwg ]
