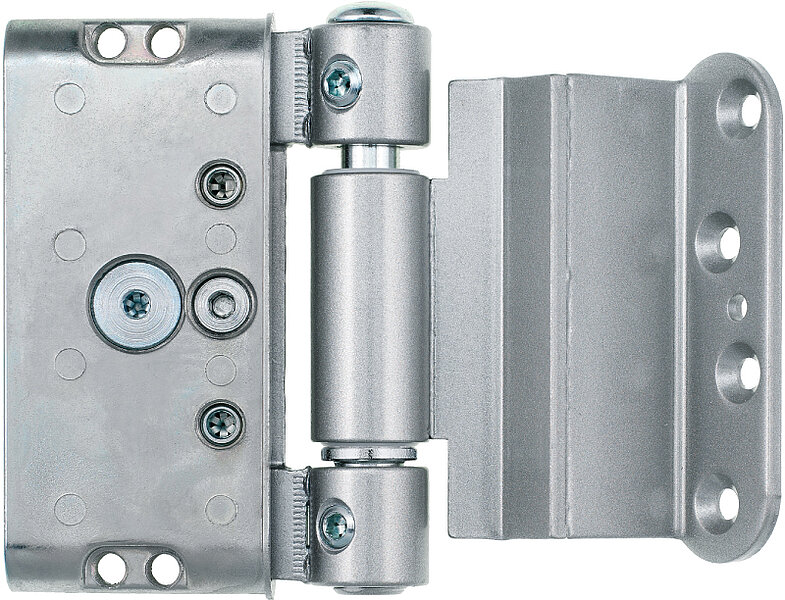

Duplex DU320-3D-TZ
Front door hinge with hinge cup and Z-flap – up to 160 kg door weight
Product selection
Select a product version so we can show you the exact availability and price.
Available from Goll warehouse.
Delivery quantity on request
Stock availability is being double-checked.
Bulk quantity on request
Stock availability is being double-checked.
UVP/Piece
EUR
-
Order number
Order number Stift
Order number Schrauben
All orders are processed through us and invoiced through your chosen retailer. Prices exclude VAT.
Quick order
+43 5574 74177-0
+43 5574 74177-0
Finishes
| Order number | Finish | ctn | x-ctn | UVP / Piece | Krt. | Total Piece | |||
|---|---|---|---|---|---|---|---|---|---|

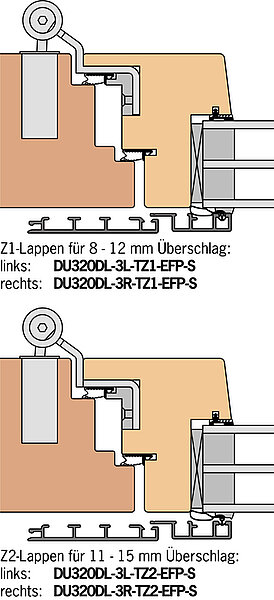

| DU320DL-3L-TZ1-EFP-S |
stainless-steel finish, powder-coated – left
|
6 | 30 | 6 | EUR 94,88 |
Available immediately
On request
Quantity on request
|
|||
| DU320DL-3R-TZ1-EFP-S |
stainless-steel finish, powder-coated – right
|
6 | 30 | 6 | EUR 94,88 |
Available immediately
On request
Quantity on request
|
| Order number | Finish | ctn | x-ctn | UVP / Piece | Krt. | Total Piece | |||
|---|---|---|---|---|---|---|---|---|---|
| DU320DL-3L-TZ2-EFP-S |
stainless-steel finish, powder-coated – left
|
6 | 30 | 6 | EUR 94,88 |
Available immediately
On request
Quantity on request
|
|||
| DU320DL-3R-TZ2-EFP-S |
stainless-steel finish, powder-coated – right
|
6 | 30 | 6 | EUR 94,88 |
Available immediately
On request
Quantity on request
|
Description
Ausführung: Die Bandtasche ist aus Zinkdruckguss, die Bandrolle, der Achsstift und der Bandlappen sind aus Stahl gefertigt.
Einbruchhemmung: Das Duplex 320-3D Haustürband ist je nach Falzsystem bis zur Widerstandsklasse RC3 tauglich.

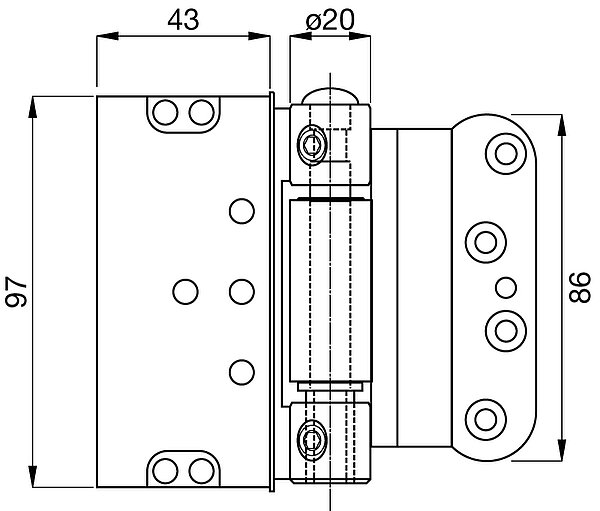

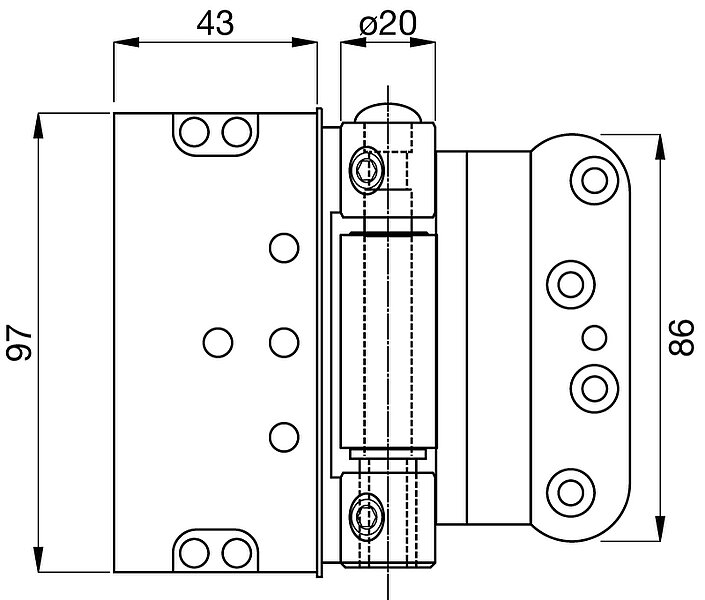

Technical data
|
Hingetype |
Hinge rollØ mm |
Hinge height mm |
Load cap. 2 Hng. kg |
Load cap. 3 Hng. kg |
Load cap. 4 Hng. kg |
CE |
|---|---|---|---|---|---|---|
| TZ1 | Ø20 | 97 | 110 | 130;160 | 160 | |
| TZ2 | Ø20 | 97 | 110 | 130;160 | 160 |
Features
Downloads
Product information
[ pdf ]
CAD data
[ dwg ]
[ dwg ]
[ dwg ]
[ dwg ]
